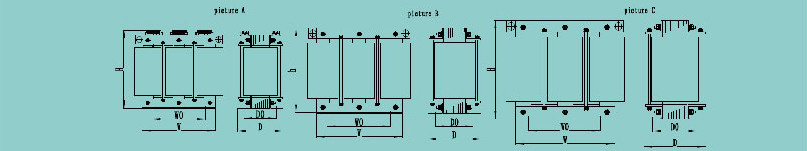

四、外型及尺寸參數(shù)
三相隔離變壓器型號(hào) | 圖號(hào) | 逆變器功率(KW) | 額定輸出電流(A) | 三相輸入電壓 | 三相輸出電壓 | 變壓器效率 | 重量 (KG) |
尺寸(mm) | ||||
W | D | H | WO | DO | ||||||||
FSG -10 -EISA -690/400 | A | 10 | 14.4 | AC690V | AC400V | 95% | 110 | 430 | 260 | 450 | 240 | 176 |
FSG -15 -EISA -690/400 | 15 | 21.7 | AC690V | AC400V | 96% | 170 | 430 | 320 | 450 | 240 | 236 | |
FSG -20 -EISA -690/400 | 20 | 28.9 | AC690V | AC400V | 96.3% | 175 | 430 | 320 | 450 | 240 | 236 | |
FSG -30 -EISA -690/400 | B | 30 | 43.3 | AC690V | AC400V | 96.6% | 260 | 430 | 390 | 520 | 240 | 276 |
FSG -50 -EISA -690/400 | 50 | 72.2 | AC690V | AC400V | 96.8% | 305 | 430 | 390 | 520 | 240 | 276 | |
FSG -100 -EISA -690/400 | C | 100 | 144.3 | AC690V | AC400V | 97.6% | 485 | 600 | 470 | 620 | 550 | 288 |
FSG -125 -EISA -690/400 | 125 | 180.4 | AC690V | AC400V | 97.9% | 570 | 600 | 500 | 620 | 550 | 318 |
